Desk 02 · Video bars · VB-C and VB-W

Two conference room video bars, and the room size where each one stops working

VB-C $1,100–$1,600 per unitVB-W $2,900–$3,900 per unitLens height 1,150 mmInquiry-only

VB-C · Compact

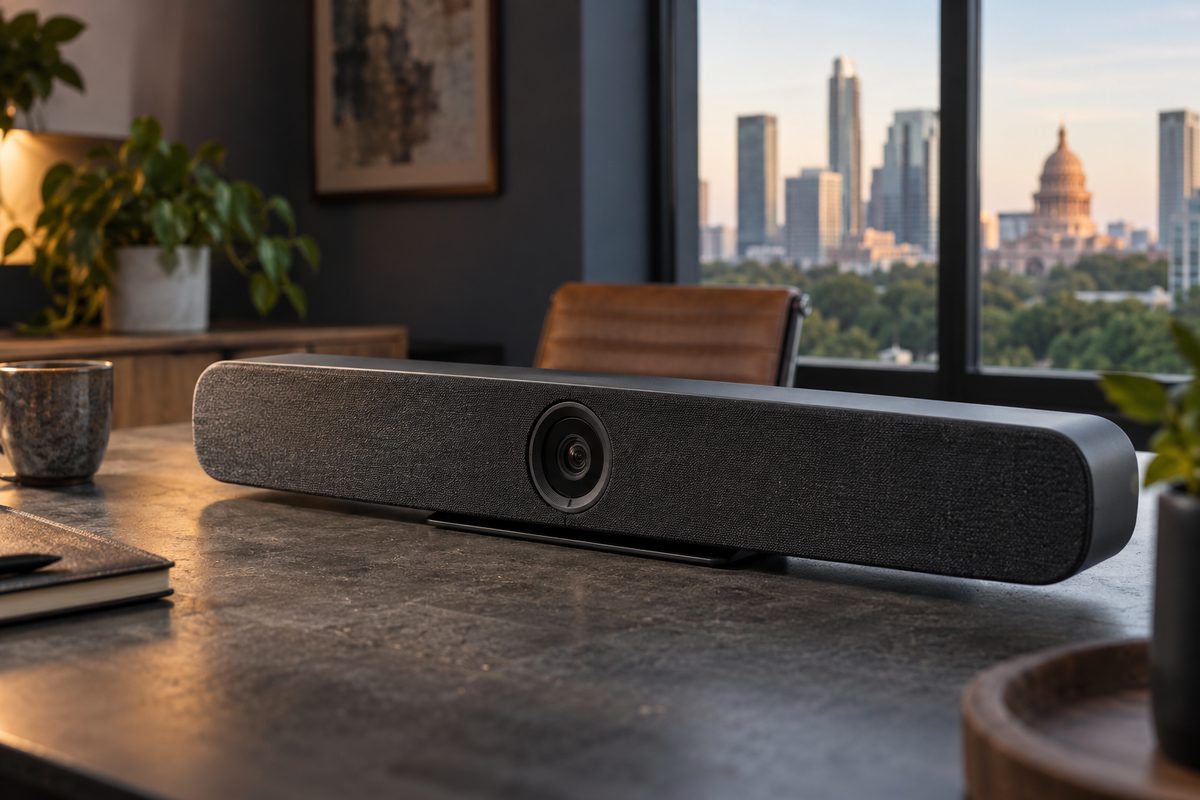

VB-C Compact video bar for huddle and small rooms

One 4K camera with a 120° field of view, six beamforming microphones and a pair of speakers behind a woven grille, in a bar about 45 cm long. It plugs into a room PC or a laptop over USB, or runs as the camera and audio half of a KIT-H huddle kit.

It is the right bar for a room up to 4 × 5 m with drywall and four to six chairs. The 120° lens catches the people seated at the near corners of the table, which a 90° webcam crops off. Past 5 m deep the far seats get small and quiet, and that is the point to look at the VB-W instead.

Who it does not suit: rooms with a glass wall and a table longer than about 3.5 m. The microphones hear the glass. Add an SP-C ceiling tile or move up a size.

Camera: 4K, single lens
Field of view: 120° horizontal
Microphones: 6-mic beamforming array
Room size: Up to 4 × 5 m
Seats: Typically 2 to 6
Mount: Under or over the display, lens at 1,150 mm
Bench test: 48 h on your platform, firmware pinned

Price basisFrom $1,100 to $1,600 per unit Mount and volume move it

Send the room details Estimate a room

VB-W · Wide

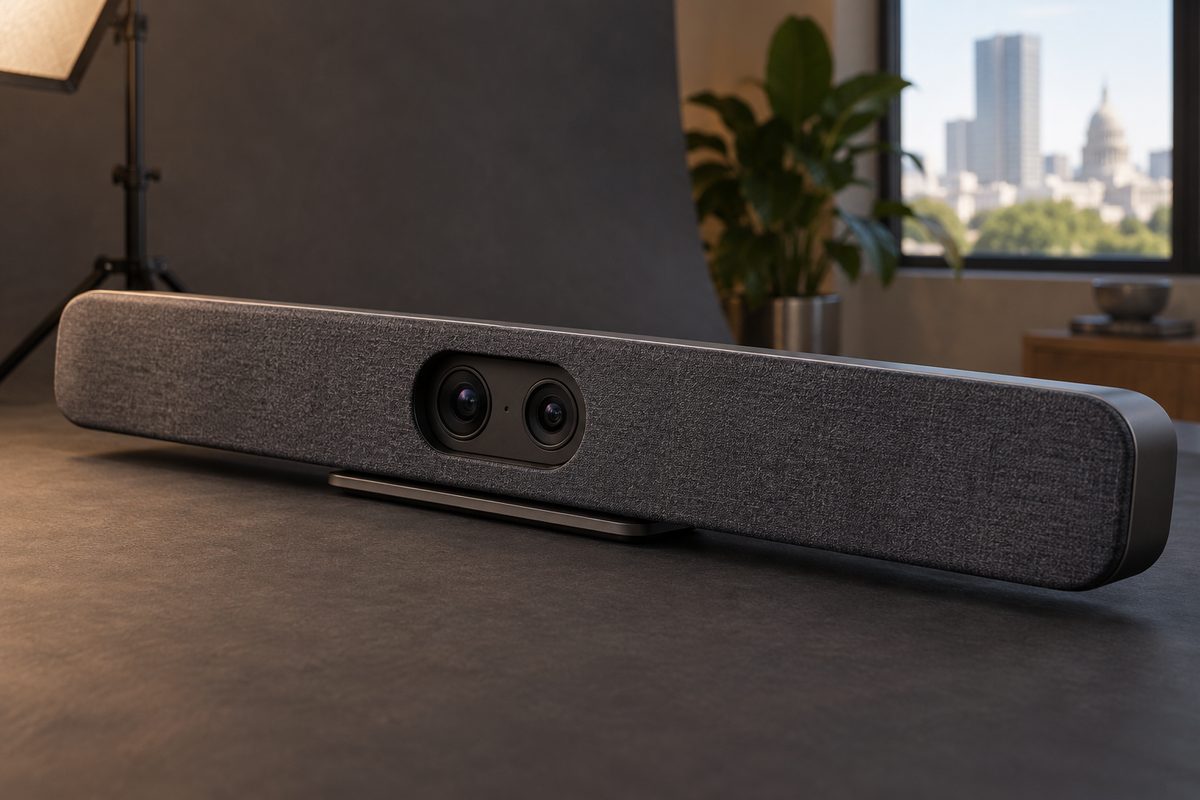

VB-W Wide video bar for 5 to 12 seats

Two cameras in a bar about 90 cm long, with a grey fabric front. One lens holds the whole table. The second zooms in on the speaker, and the bar's auto-framing cuts between them so the far end sees a face rather than a room. That matters most in long rooms, where a single wide lens turns the people at the end of the table into thumbnails.

Use it for tables of five to twelve. It is the bar we fit most often in medium rooms, usually with one ceiling tile over the far half of the table. On its own it covers the camera fully and the audio well up to about 6 m. Beyond that the microphones are working too hard.

Auto-framing can be switched off. Some boards prefer a fixed wide shot for the whole meeting, and we set that on the bench if you say so.

Cameras: Dual, with auto-framing
Seats: 5 to 12
Width: About 90 cm
Good pairing: SP-C ceiling tile past 6 m or with glass
Mount: Under the display, lens at 1,150 mm
Platform: Configured for Teams Rooms or runs Zoom Rooms
Bench test: 48 h, framing mode set before ship

Price basisFrom $2,900 to $3,900 per unit Not a quote

Send the room details Compare in the catalogue

VB-C 4K · 120° FOV
6-mic beamforming
VB-W dual camera
Auto-framing
5–12 seats
Lens at 1,150 mm
Teams Rooms · Zoom Rooms
48 h burn-in

Room-size table

Which bar for which room

Length is measured from the display wall to the back of the furthest chair. Walls change the answer more than seats do.

Video bar by room size and wall type
Room length	Seats	Drywall or brick	One glass wall or more
Up to 3.5 m	2–4	VB-C	VB-C
3.5 to 5 m	4–6	VB-C	VB-C plus one SP-C tile
5 to 6 m	6–10	VB-W	VB-W plus one SP-C tile
6 to 7.5 m	8–12	VB-W plus one SP-C tile	VB-W plus two SP-C tiles, or a KIT-B
Over 7.5 m	12+	No bar. A PTZ camera and ceiling array, see KIT-B

1,150 mmLens height off the finished floor

We mount the camera at eye height on the display, 1,150 mm off the floor. Above that, everyone looks like they are being filmed from a ladder.

That height is a seated adult's eye line. It usually means the bar goes under the display, and the display goes up a little to make room. Bars mounted on top of a 75-inch panel end up near 1,900 mm and look down on the table.

Mounting heights and the three mistakes we fix most

Bar on top of a tall display. Fine for a standing huddle, poor for a seated room. If the panel cannot drop, tilt the bar down 5 to 8°, which is the limit before the top of heads gets cut.

Display on a trolley in a room that has a wall. The bar wobbles every time someone touches the screen and the auto-framing chases the motion. Wall mount it.

Bar centred on a display that is not centred on the table. The camera centres on the table, not the wall. We measure the table axis on the survey.

Lens height: 1,150 mm, seated rooms
Standing huddle: 1,450 to 1,550 mm
Max downward tilt: 5 to 8°
Gap to display edge: 20 to 40 mm, so the bracket clears the panel
Cable: USB run under 5 m without an extender
Install, Austin area: $450 to $900 per room

Questions about the bars

Will a video bar work without a room PC?

Yes. Both bars work as USB devices with any laptop, which is the bring-your-own-device setup. A room PC or a room kit adds one-touch join and a controller on the table.

Can we put a VB-C in a 7 m room if we add a tile?

The tile fixes the audio. The camera is still a single lens trying to make faces 7 m away readable. We will tell you that before you spend $1,100 on it.

Do you supply the display?

On request, priced separately. The interactive displays are listed with their own bands, and the estimator adds $2,800 to $4,200 per display.

Video bars

Tell us the room and we will tell you which bar

Length, seats, wall finish. A phone or an email is enough to reply.

Name required

Phone optional

Email optional

Site address or city optional

The room optional

You may store these details and reply about this inquiry. I have read the privacy policy and the terms.

Price bands are per unit and move with the order. Nothing on this page is a quote.
